Add a new client

This guide walks you through registering an additional OAuth client in NQRust-Identity, beyond the Portal client created in Phase 2. We use NQRust Analytics as the running example — replace the names with whatever fits your application.

Prerequisites

  • Phase 1 and Phase 2 are completed.
  • You can log in to the Identity Admin Console and the nqrust realm exists.
  • Your new application is ready to receive a Client ID and Client Secret.

Step 1 — Open the Identity Admin Console

Open the Identity Admin Console in your browser and log in:

https://<hostname>:<identity_port>/admin

Make sure the nqrust realm is selected (check the realm name shown at the top of the left sidebar). If a different realm is selected, click the realm name and switch to nqrust.

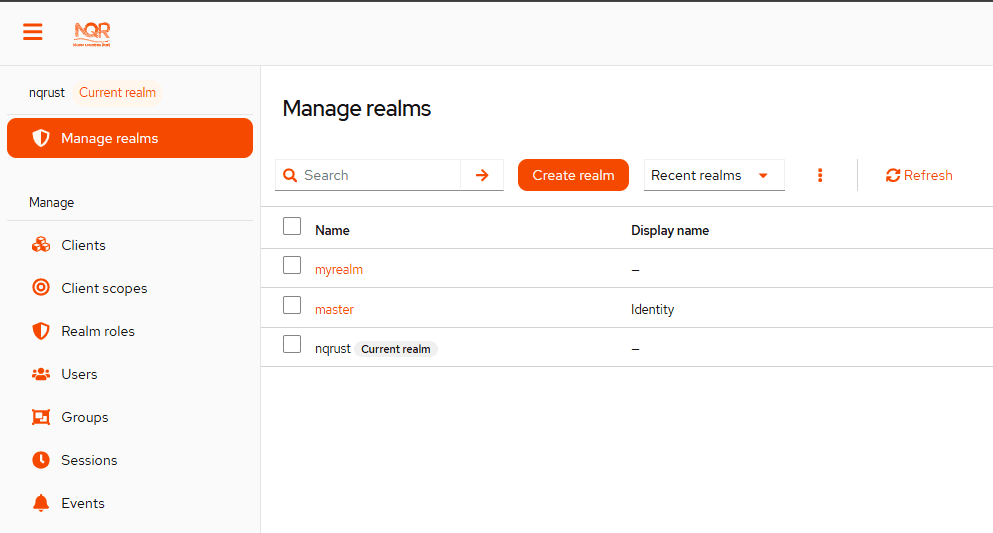

Identity Admin Console with nqrust realm selected

Step 2 — Create the OAuth client

In the left sidebar, click Clients, then click the Create client button. The wizard has three steps: General settings, Capability config, and Login settings.

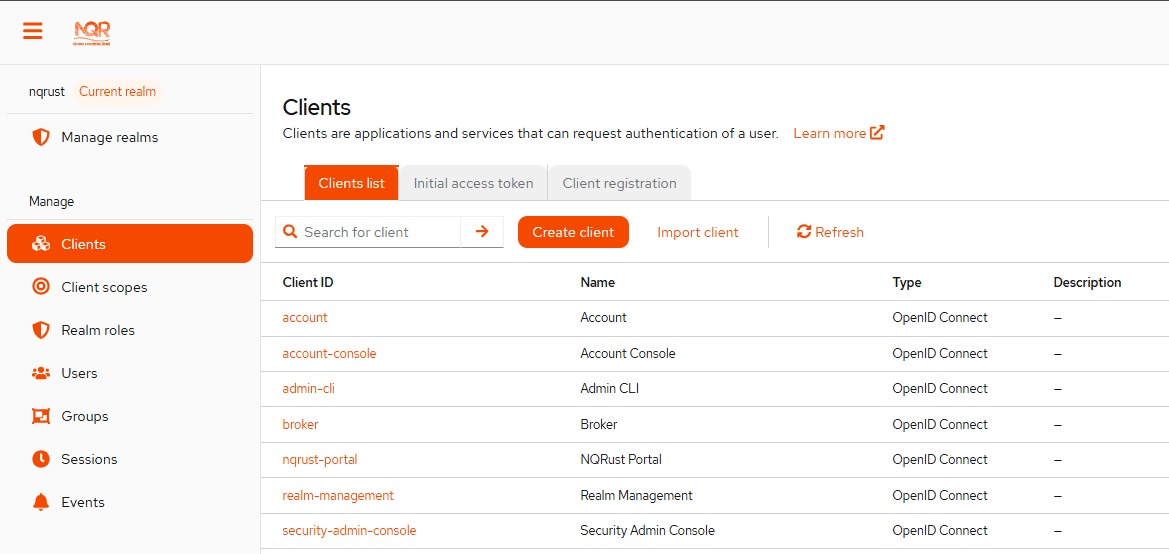

Clients page with Create client button

Step 2.1 — General settings

On the first wizard step, fill in the form as follows:

FieldValue
Client typeLeave as OpenID Connect (default).
Client IDEnter nqrust-analytics exactly. This value is required and is used by your application to identify itself.
NameEnter any human-readable label, for example NQRust Analytics. This is shown in the admin console only.
DescriptionOptional. Leave blank or add a short note such as OAuth client for NQRust Analytics.
Always display in UIToggle to On.

Click Next to continue.

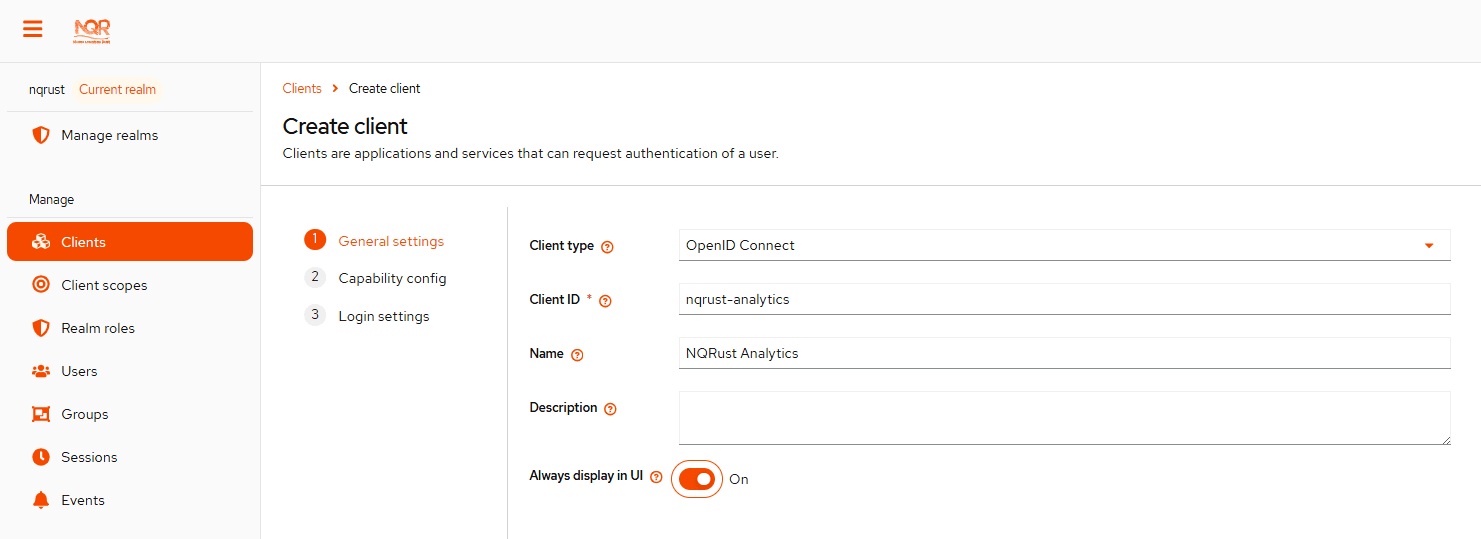

Create client - general settings

Step 2.2 — Capability config

On the second wizard step, configure the following options:

  • Client authentication — toggle to On.
  • Authorization — toggle to On.
  • Authentication flow — make sure these two checkboxes are checked:
    • ✅ Standard flow
    • ✅ Service accounts roles
  • PKCE Method — leave as Choose... (no value).

Click Next to continue.

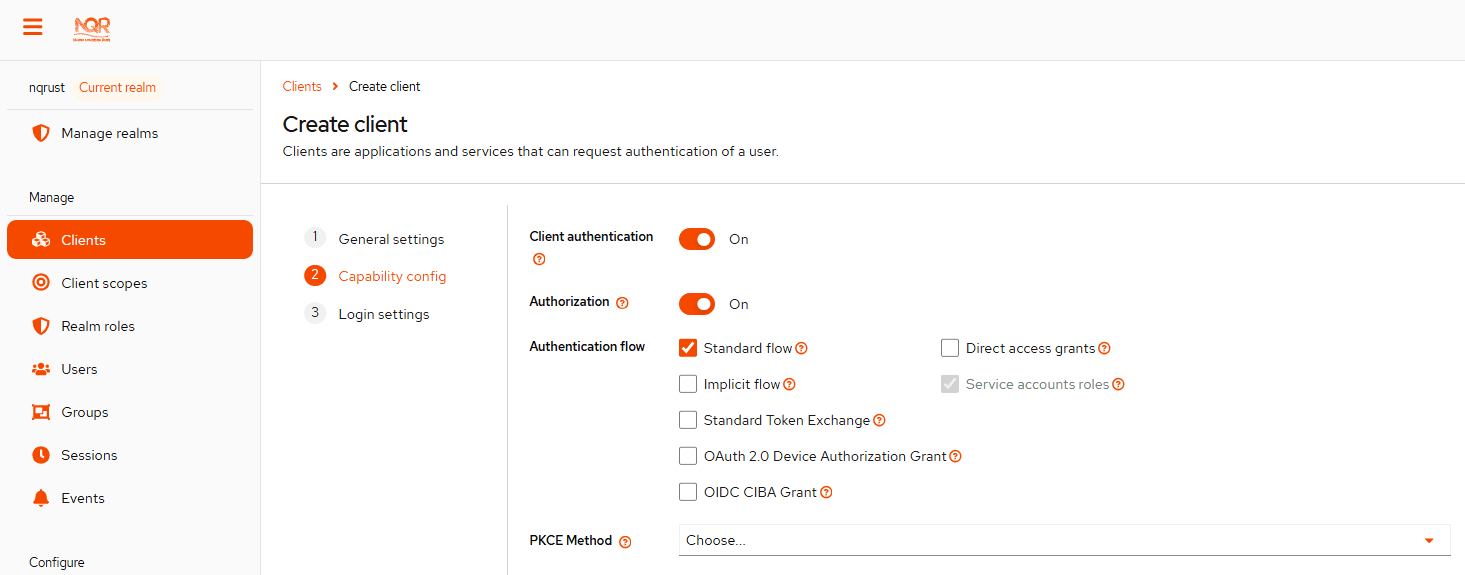

Capability config

Step 2.3 — Login settings

On the Login settings step, fill in the URLs that match where your application will be hosted. Each application has its own host, port, and callback path, so adjust the values to fit your setup:

FieldDescription
Root URLThe base URL of your application, e.g. https://analytics.example.com.
Home URLUsually the same as Root URL.
Valid redirect URIsThe OAuth callback URL your application listens on, e.g. https://analytics.example.com/auth/callback.
Valid post logout redirect URIsThe URL Identity should redirect to after logout, e.g. https://analytics.example.com.
Web originsThe browser origin(s) allowed to call Identity, e.g. https://analytics.example.com.

Click Save.

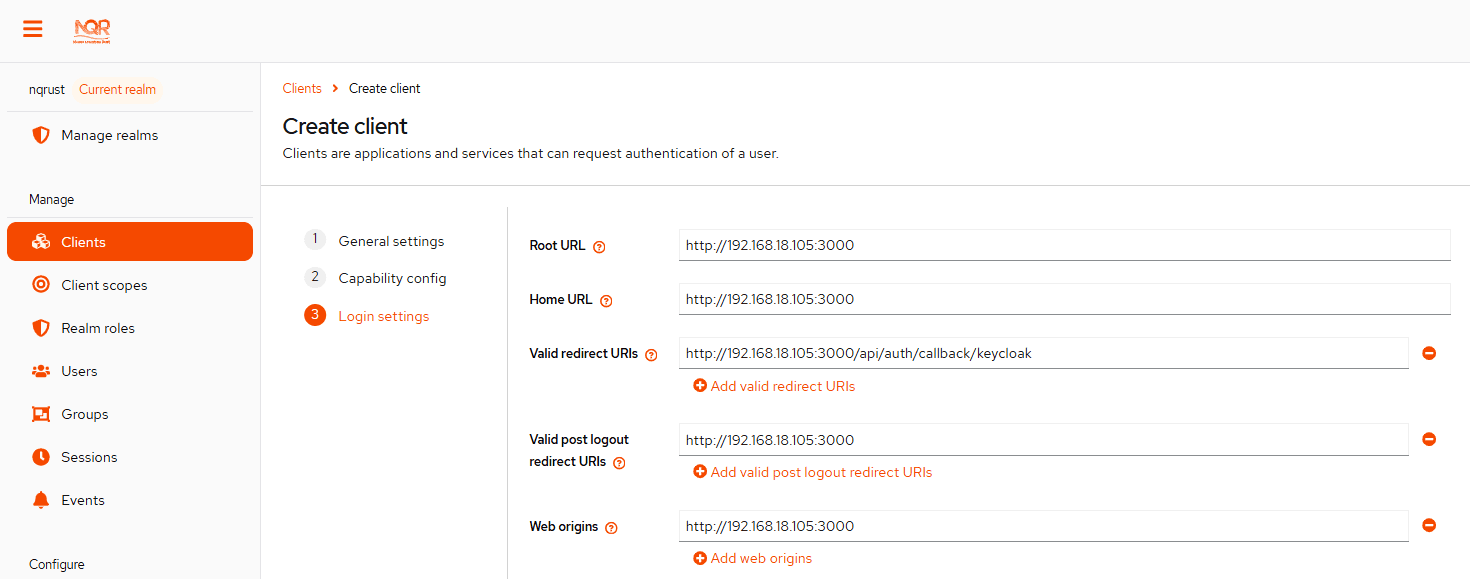

Login settings

Step 3 — Copy the client secret and configure your application

Click the Credentials tab of the nqrust-analytics client:

  1. Locate the Client secret field.
  2. Click the copy button to copy the secret to your clipboard.

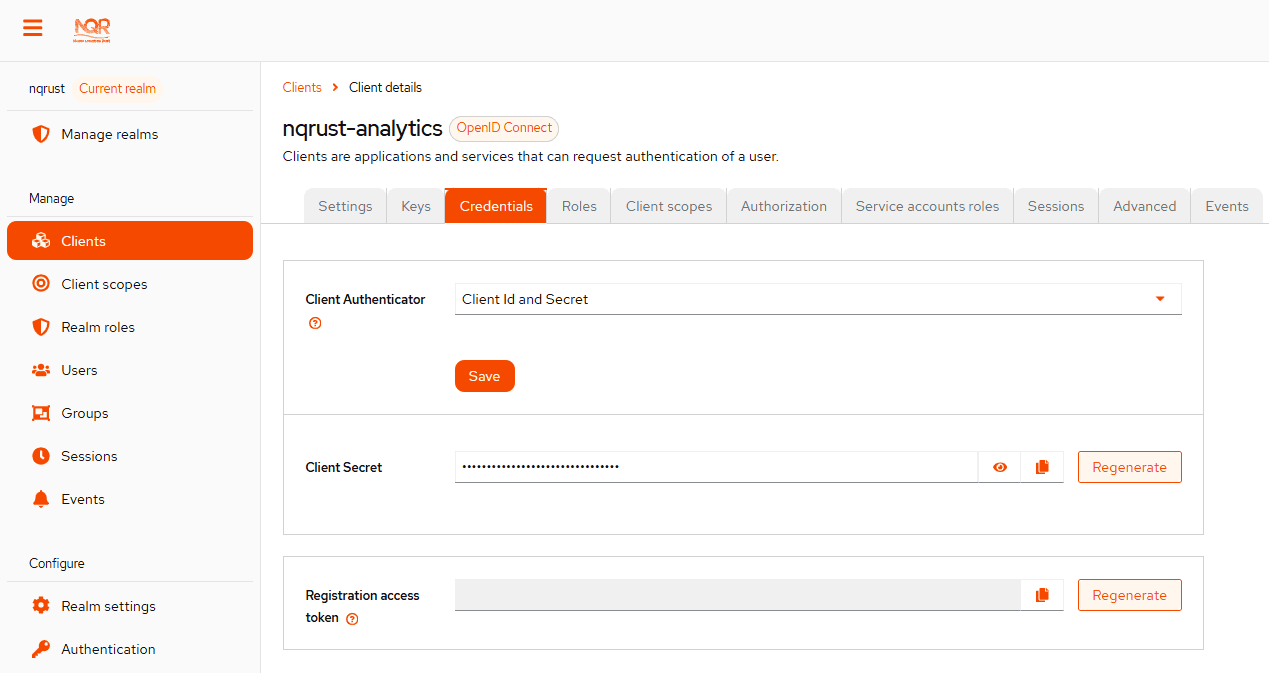

Copy client secret

Now paste the Client ID and Client Secret into your application's configuration. The exact mechanism depends on the framework or language your application uses — refer to your application's documentation for details. As a common example, many applications read these values from environment variables:

OIDC_CLIENT_ID=nqrust-analytics
OIDC_CLIENT_SECRET=<paste-secret-here>
OIDC_ISSUER=https://<hostname>:<identity_port>/realms/nqrust
⚠️

Treat the client secret like a password. Do not share it or commit it to version control.

Step 4 — Create a realm role for the client

Create a realm role that you will assign to users who should have access to this client.

  1. Make sure the nqrust realm is still selected.
  2. In the left sidebar, click Realm roles.
  3. Click Create role.
  4. Set Role name to nqrust-analytics.
  5. (Optional) Add a description such as Grants access to NQRust Analytics.
  6. Click Save.

Create realm role nqrust-analytics

Naming the role to match the Client ID (nqrust-analytics) keeps things consistent and easy to reason about, but you can use any name your application's authorization logic expects.

Step 5 — Assign the role to users

Grant users the nqrust-analytics role so they can access the application.

  1. In the left sidebar, click Users.
  2. Click the username you want to grant access to. (If the user doesn't exist yet, click Add user first and create one — see Phase 2, Step 6 for the user creation steps.)
  3. On the user detail page, click the Role mapping tab.
  4. Click Assign role. A dialog appears asking which type of role to assign — choose Realm roles.
  5. Check the box next to the nqrust-analytics role.
  6. Click Assign.

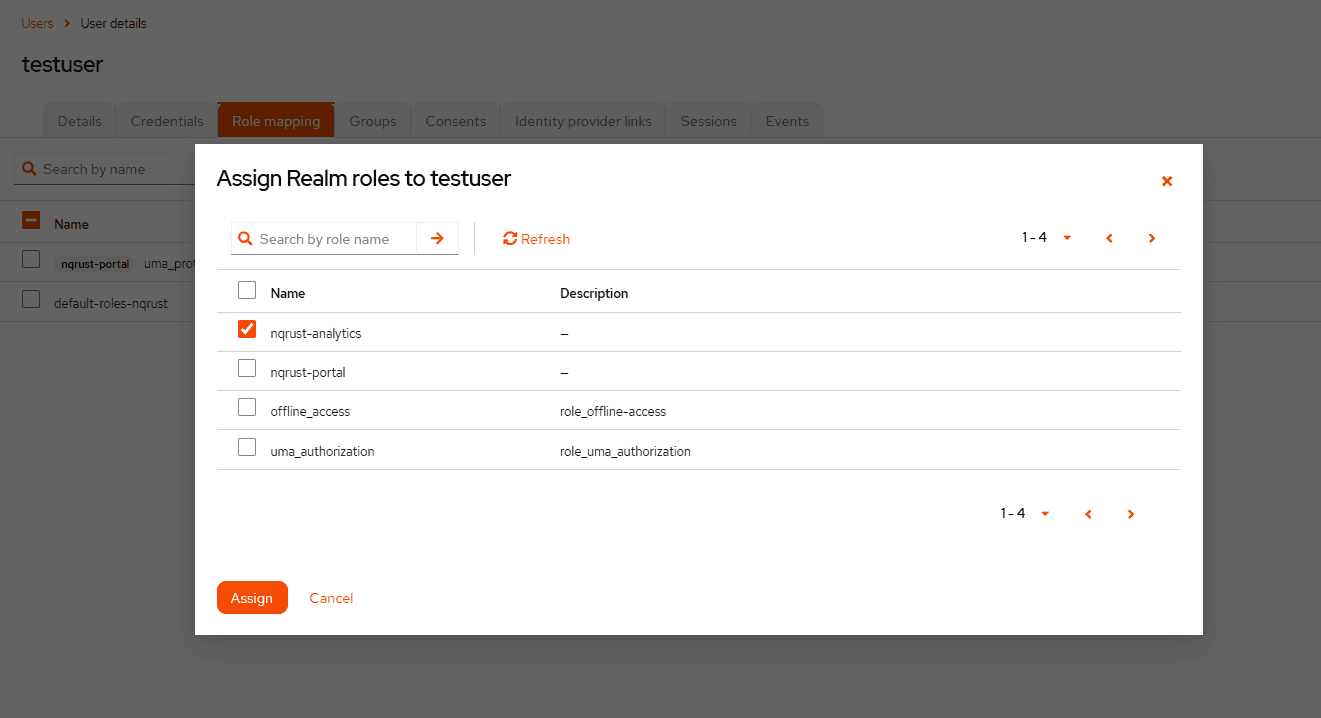

Assign nqrust-analytics realm role to user

⚠️

Repeat this step for every user that needs access to the new client.

Your new client is now registered, configured, and ready to authenticate users.
